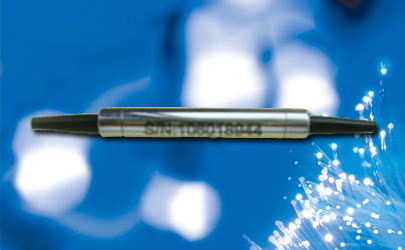

100G,200G Optical Add-Drop Multiplexer (1X2)
|
 |
| |
- Channel Add/Drop
- DWDM Network
- Wavelength Routing
- Fiber Optical Amplifier
- CATV fiber optic System
|
|
 |
| |
- Low insertion loss
- Wide pass band
- High channel isolation
- High stability and reliability
- Epoxy free on optical path
|
|
|
| |
| Parameter |
|
MUX/DEMUX |
| Operating Wavelength (nm) |
|
ITU Grid |
| Center Wavelength Accuracy (nm) |
|
±0.05 |
±0.1 |
| Channel Spacing (GHz) |
|
100 |
200 |
| Channel Passband (@-0.5dB bandwidth) (nm) |
|
>0.22 |
>0.5 |
| Pass Channel Insertion Loss (dB) |
|
≤1.0 |
≤0.9 |
| Reflection Channel lnsertion Loss (dB) |
|
≤0.6 |
≤0.6 |
| Channel Ripple (dB) |
|
< 0.3 |
| Isolation (dB) |
Adjacent |
>30 |
| Non-adjacent |
>40 |
| lnsertion Loss Temperature Sensitivity (dB/℃) |
|
>13 |
| Express Channel Isolation (dB) |
|
<0.005 |
| Wavelength Temperature Shifting (nm/℃) |
|
<0.002 |
| Polarization Dependent Loss (dB) |
|
<0.1 |
| Polarization Mode Dispersion (ps) |
|
<0.1 |
| Directivity (dB ) |
|
>50 |
| Return Loss (dB) |
|
>45 |
| Maximum Power Handling (mW) |
|
500 |
| Operating Temperature (°C) |
|
-10 ~+75 |
| Storage Temperature (°C) |
|
-40 ~+85 |

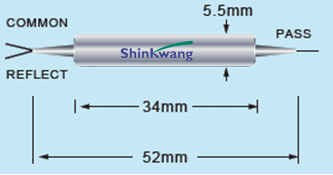

| Package Dimension (mm) |
|
5.5 x L34 (L38 for 900um loose tube) |
* Specifications may change without notice.
* Above specification are for device without connector.
|
| **Package Dimension :
|
 |
|
 |
|
|
|
| |
a |
DWDM Type |
F : Filter, A : AWG |
b |
Channel |
8 : 8Ch, 16 : 16Ch, 32 : 32Ch |
c |
Channel Space |
50 : 50GHz, 100 : 100GHz, 200 : 200GHz |
d |
ITU-T Grid |
C : C Band, L : L Band, CB : Blue, CR : Red |
e |
Start ITU-T Wavelength |
ITU-T Wavelength |
f |
Stop ITU-T wavelength |
ITU-T Wavelength |
g |
Fiber Type |
025 : 0.25mm, 09 : 0.90mm, Customized |
h |
Fiber Length(m) |
1 : 1m, others |
i |
Connector Type |
SC, LC, FC, Customized |
j |
Ferrule Type |
PC, APC |
| Dence Wavelength Division Multiplex |
|
|
