HOME Products Patch Cords F.A Patch Cords

[ PCF (H-PCF) | OM3 (G-Type) | POF( J3 BUS1, J3 BUS2) ]

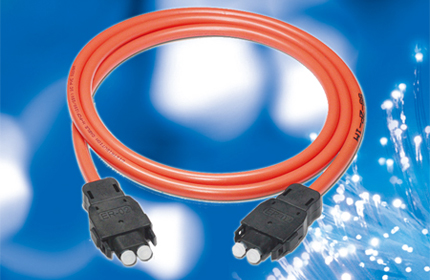

   1. PCF (H-PCF)



  - Compatible with Mitsubishi LP21-25 Type
- Used for PLC(Program Logic Control)



  - H-PCF (Hard Plastic Clad-silica Fiber) type
- Excellent tensile strength for conventional products
- The length can be decided by Customer’s request
- Environmentally stable



Items
Specification
Core
Material
Silica Glass
Outer Diameter
200±3㎛
Clad
Material
Fluoroarylate
Outer Diameter
250±3㎛
Protective Coating
Materal
ETFE
Outer Diameter
0.5±0.1㎛
Sheath
 Materal
PVC
Inner Diameter
2.8±0.3㎛
outer Diameter
6.0±0.3㎛
Attenuation(850m)
Attenuation Loss
5dB/1km

Cable Length
A : Non-Jacketed, B : Jacketed
Plastic Clad-Silica Fiber Connector
