Single window Wideband Fiber Coupler, WFC(Wavelength Flattened Coupler) is used to passively split or combine light between two fibers. The device is fabricated using fused biconic tapering technique.
The coupling ratio is designed according to customer requirements. Various types of connectors are available.

  - CATV
- Telecommunication
- FTTH
- Local Area Networks
- Test Equipment


- Low insertion & excess loss
- Excellent uniformity
- Low PDL
- High directivity
- Wide wavelength range





 Coupling Ratio  IL(dB)
 50/50  3.5
 40/60  4.4/2.6
 30/70  5.7/1.9
 20/80  7.5/1.2
 10/90  10.9/0.7
 5/95  14.7/0.5
 1/99  21.6/0.3

 Configuration  1 X 2 1 X 4 1 X 8
 Wavelength(nm)  1310±40 or 1550±40
 Typical Excess Loss(dB) 0.1 0.4 0.6
 Max. Insertion Loss(dB) 3.6  7.2 10.7
 Uniformity(dB) ≤0.6 ≤1.0 ≤1.6
 Directivity(dB) ＞55
 Polarization Dependent Loss(dB) ≤0.15 ≤0.3 ≤0.5
 Operating Temparature(°C) -40~+80
 Dimension(mm) 85(L)x75.5(W)x10(H) 100(L)x80(W)x10(H) 144(L)x95(W)x10(H)
* Without Connector Loss


 Output length  1~99m
 Polishing  SPC, UPC, APC
 Input length  1~99m
 Connector  SC, ST, FC, LC, MU, D4
 Package type  S : for Bare fiber(250um)
 L : for Loose tube(0.9mm)
 A : for Cord(2.4mm)
 Wavelength(nm)  1:1310,2:1550
 Coupling ratio  5050 : 50/50, 1090 : 10/90,
 25252525 : 25/25/25/25
 Configuration  1×2:0102,1×4:0104,1×8:0108

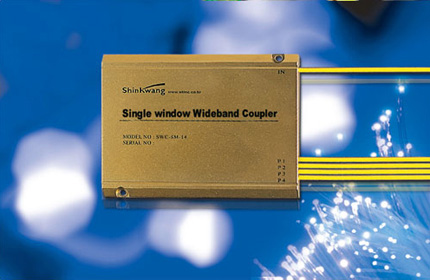

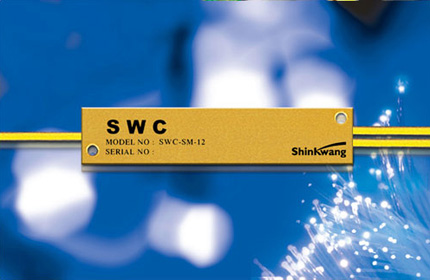

Single window Wideband Coupler
