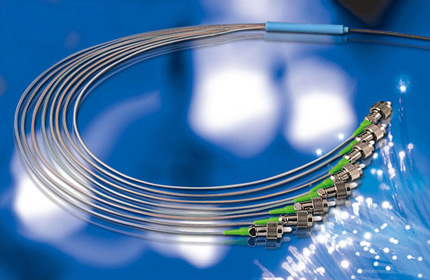

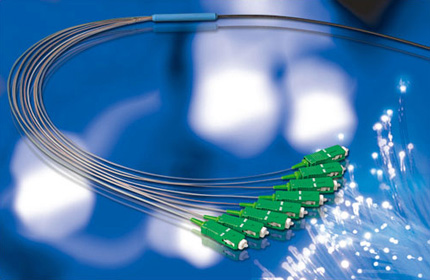

   3. Fan-out Patch Cords Type-|

- For Ribbon fiber cable - Telecommunication networks - CATV system - Local Area Network - Alignment for Active/Passive device   - Compact design - High density accommodation - Easy to handling - No need for special tools or heat shrinkage tube    Characteristics  Conditions Value Min Typ Max  Insertion Loss(dB)     0.15 0.50  Return Loss(dB)    SPC 40 45     UPC 50 55     APC 60 65    Durability(dB) 1000 matings      0.20  Operating Temperature(dB)  -40°C~80°C     0.20  Humidity Cycling(dB)  75°C, RH 95%     0.20  Vibration(dB)  10~55Hz(3 Axis)     0.20  Impact(dB)  1.5m drop, 8 cycles     0.20  Polishing Type  SPC, UPC, APC  Connector  SC.FC.ST.LC.MU  Cord length  1~3m  Ribbon length  1~10m  Fiber count  4,8,12,16 core  Fiber  SM, MM, HMM  Fan-out Patch Cord
