HOME 제품소개 Patch Cords

[ PU Cable | Drop cable for FTTH | ODC connector ]

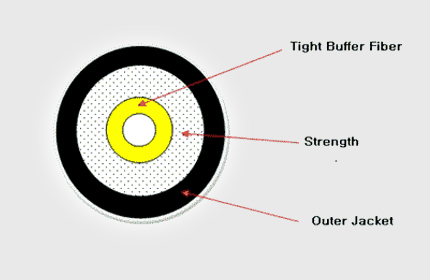

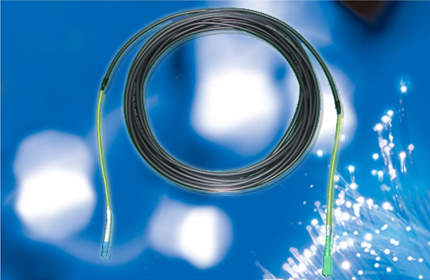

   1. PU Cable



  - Out door
- 중계기와 안테나 연결
  - High Tension(내구성)
- Environmentally stable(내환경성 우수)

Item
Character
Data
Insertion Loss(dB) Avg : 0.12dB
Return Loss(dB) PC : Min. 55dB
APC : Min. 60dB
Tension Load 50kg

Operating Temperature

-40°C~80°C

Cable Dia

 Ф5.5mm



Cable length

Connector Type : SC/PC, APC, etc

B : Breakout cable

D : Distribution cable

Single Mode

Poly urethane
