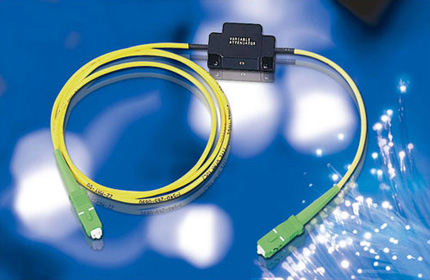

HOME 제품소개 Optical Attenuators



  - DWDM system
- Test equipments
- Telecommunication networks
- Optical amplifiers

  - Wide attenuation range
- High resolution
- Wavelength Insensitive
- Low PDL


 Characteristics  Conditions

Value

Min Typ Max
 Attenuation Range(dB)     1~40
 Resolution(dB)     0.1
 Return Loss(dB)  SPC  40
   UPC  50
   APC  60
 Operating Wavelength(nm)  1310 and 1550

 Out port cord length  1~100dB
 Out port Polishing  SPC, UPC, APC
 Out port connector  SC, FC, LC, MU, ST
 Inport cord length  1~100m
 Inport polishing  SPC, UPC, PC
 Inport connector  SC, FC, LC, MU, ST
 Usage  SM, MM
 Filter type Variable Attenuator
