HOME 제품소개 Optical Termination Cable



  - Telecommunication
- CATV system
- Local Area Network
- Emergency connecting area
  - Reduce splicing time
- Easy installation
- Pre-connectorized at cable

 Characteristics  Conditions

Value

Min Typ Max
 Insertion Loss(dB)  Cable length(L) :0.2km↓     0.50
   :0.2~1km       0.38L+0.5
   :1km↑     0.5L+0.5
 Return Loss(dB)  SPC 40 45
   UPC 50 55 0.20
   APC 60 64 0.20
 Operating Temperature(dB)  -40℃~80°     0.20
 Humidity Cycling(dB)  -40°C, RH 90~95%     0.20
 Vibration(dB)  10~55Hz(3 Axis)     0.20
 Impact(dB)  1.5m drop, 8 cycles     0.20
 Flexibility(dB)  0.9kg load, 100 cycles     0.20




 Max cord length
 Min cord length
 Polishing  SPC, UPC, APC
 Connector  SC, FC, LC, MU, MT, ST
 Cable length  10~1,000m
 Cable(Fiber) count  4~1,000
 Fiber Type  SM, MM, HMM
 Cable Type  L : Loose tube, R : Ribbon

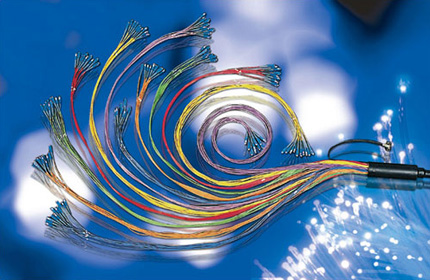

 Optical Termination Cable
