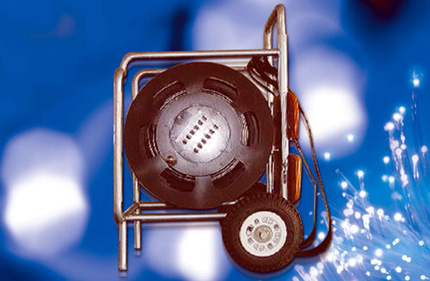

HOME 제품소개 Optical Termination Cable



  - Telecommunication networks
- CATV system
- Local Area Network
  - Compact design
- High density accommodation
- Easy to handling
- Customer length

 Characteristics  Conditions

Value

Min Typ Max
 Insertion Loss(dB)     0.10 0.50
 Return Loss(dB)  PC 50 55
   APC 60 64
 Durability(dB)  1,000 matings      0.20
 Operating Temperature(dB)  -40°C~80°C     0.20
 Humidity Cycling(dB)  75°C, RH 95%     0.20
 Vibration(dB)  10~55㎐(3Axis)     0.20
 Impact(dB)  1.5m drop, 8 cycles     0.20




A
B
C
D
E
  Fiber Type   Cable Length
Connector Type/End Shape
Pigtail cord Length(m)
Fiber count
 SM : 9/125
50~500
SC
PC
0.5
6C
 MM: 50/125
FC
APC
1.0
12C
 HMM:62.5/125
ST

1.5


2.0


3.0
