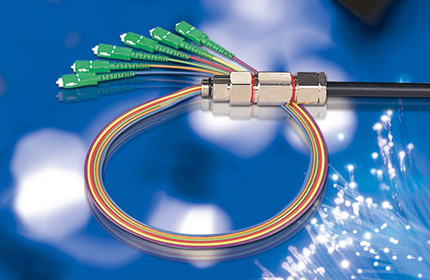

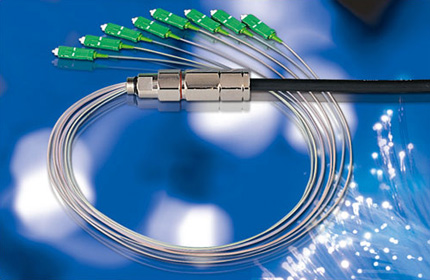

HOME 제품소개 Optical Termination Cable



  - CATV system for ONU
- Local Area Network
- Emergency connecting area
  - Reduce splicing time
- Water proof at mounting point
- Customized assemblies available length, connector type
- Tow to twelve fiber counts available

 Characteristics  Conditions

Value

Min Typ Max
 Insertion Loss(dB)     0.15 0.50
 Return Loss(dB)  SPC 40 45
   UPC 50 55
   APC 60 64
 Durability(dB)  1,000 matings      0.20
 Operating Temperature(dB)  -40°C~80°C     0.20
 Humidity Cycling(dB)  75°C, RH 95%     0.20
 Vibration(dB)  10~55Hz(3 Axis)     0.20
 Impact(dB)  1.5m drop, 8 cycles     0.20



 Cord dia  0.9, 2.0, 2.4, 3.0mm
 Polishing Type  SPC, UPC, APC
 Connector Type  SC, FC, LC, MU, ST
 Cable length  1~100m
 Conecting No.  1~12
 Cable(Fiber) count  2~12 core
 Fiber  SM, MM, HMM
 Optical Service Cable
