HOME 제품소개 Optical Termination Box







  - Telecommunication networks
- CATV system
- Premise networks


- Environmentally sealed outer door for secured terminations
- Locking available on front panel
- Inter connecting for up to 1core & splicing for up to 16core optical fiber
- Small & Compact Design

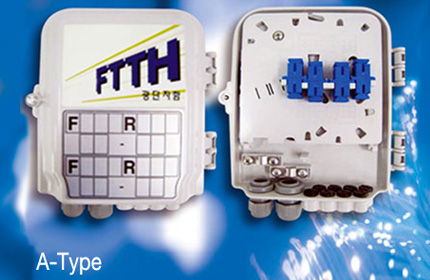

A-Type

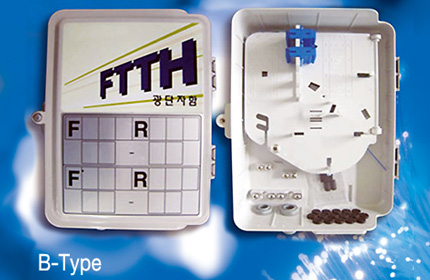

B-Type

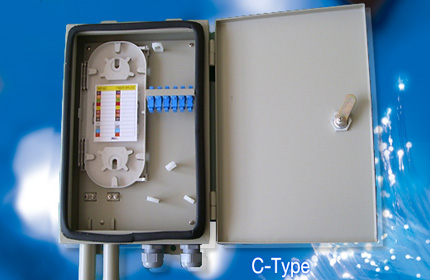

C-Type
Fiber Cap
8
16
12
Adaptor
8
16
12
Splicing
8
16
12
Size (mm) W x D x H
208x188x50
340x267x102
250x75x350
Input Port
2
2
2
Output Port
8
16
2

Fiber Capacity 1 ~32
Adaptor SC, LC, FC, ST, None
Type A,B,C
Optical Termination Box
