HOME 제품소개 Optical Distribution Frames






  - Telecommunication networks
- CATV system
- Local Area Network
- Active/ Passive device

- Environmentally seabed out door for secured terminations
- Locking available on front pannel
- Inter connecting splicing for up to 12 optical fiber

  Item
  Model

Capacity
(Max)

Dimension
Remark

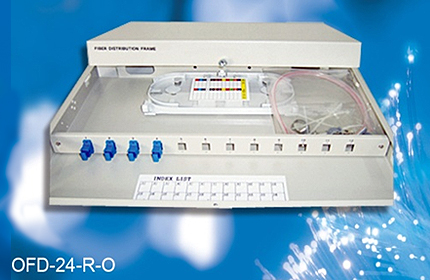

OFD Rack
OFD-24-R-O
24
480X310X44.2
1U Open Type

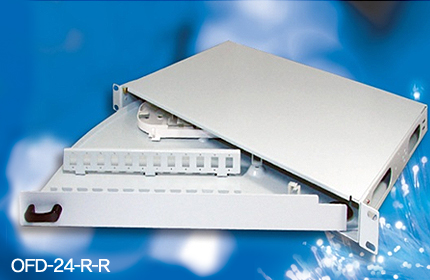

OFD Rack
OFD-24-R-R
24
480X310X44.2
1U Round Type

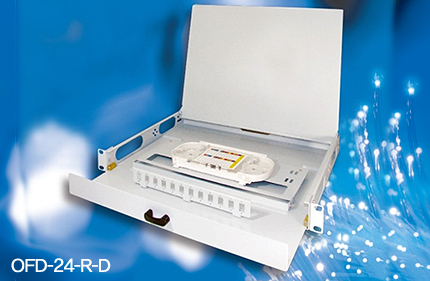

OFD Rack
OFD-24-R-D
24
480X310X44.2
1U Drawer Type

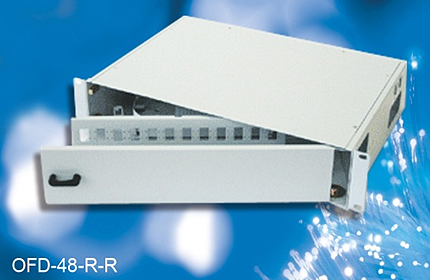

OFD Rack
OFD-48-R-R
48
480X310X88.5
2U Round Type

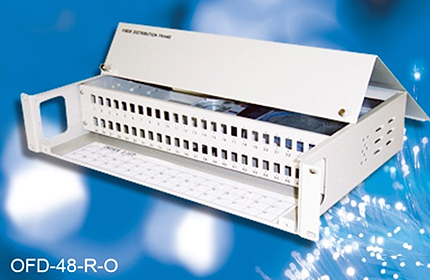

OFD Rack
OFD-48-R-O
48
480X310X88.5
2U Open Type

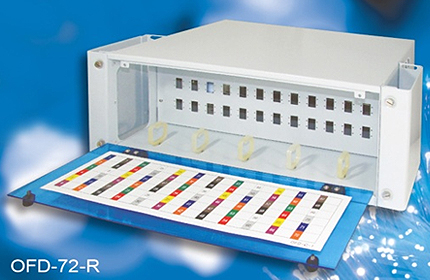

OFD Rack
OFD-72-R
72
480X310X177.5
4U Door Type

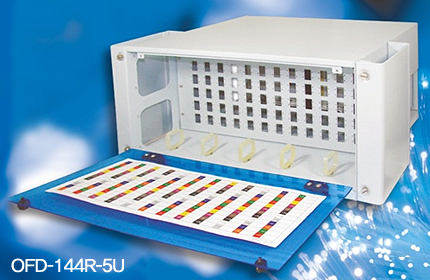

OFD Rack
OFD-144-R
144
480X310X222
5U Door Type

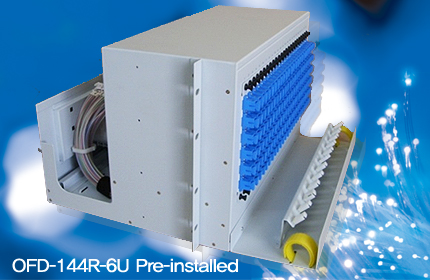

OFD Rack
OFD-144-R
144
480X430X266
6U Slot Type

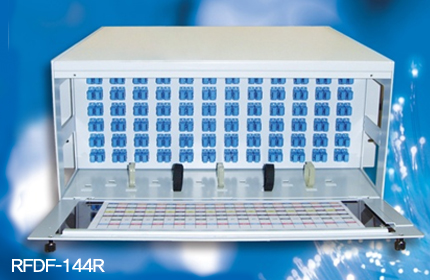

RFDF Rack
RFDF-144-R
144
480X275X222
5U Door Type

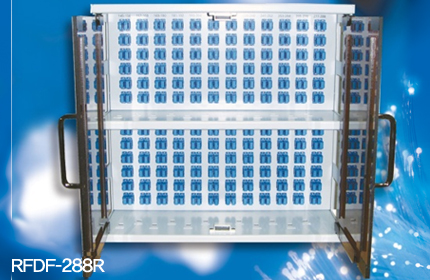

RFDF Rack
RFDF-288-R
288
480X275X400
9U Two Door Type

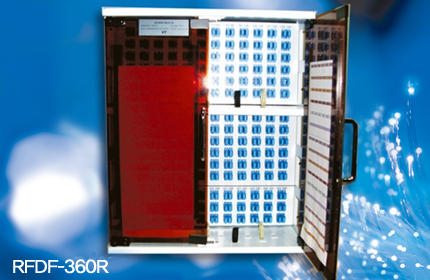

RFDF Rack
RFDF-360-R
360
480X475X489.5
11U Two Door Type

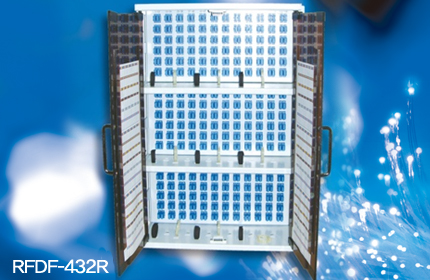

RFDF Rack
RFDF-432-R
432
480X475X577.5
13U Two Door Type

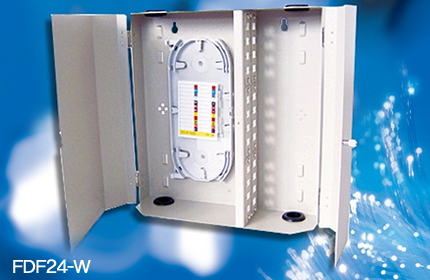

FDF Wall
FDF-24-W
12/24
310X310X88.2
Wall Type

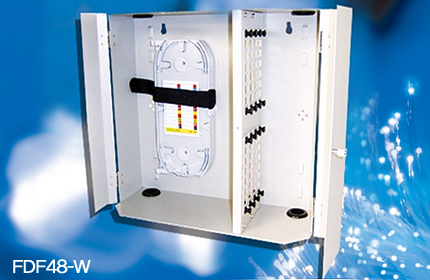

FDF Wall
FDF-24-W
48
360X310X132.2
Wall Type

* Various Adaptor type Can be installed (SC, LC, FC, ST)

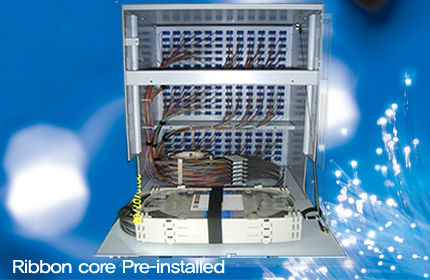

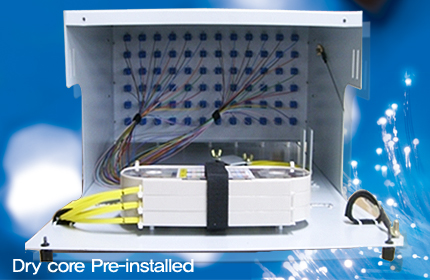

* Pigtails & Adaptors can be pre-installed
