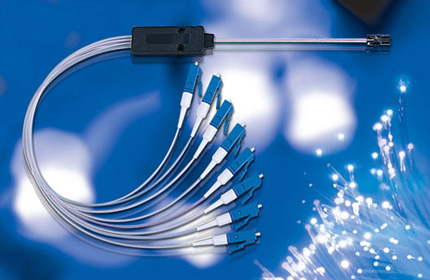

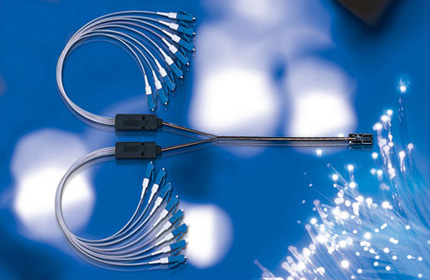

   4. Fan-out Patch Cords Type-II





  - For Ribbon fiber cable
- Telecommunication networks
- CATV system
- Local Area Network
- Alignment for Active/Passive device
  - Compact design
- High density accommodation
- Easy to handling
- No need for special tools or heat shrinkage tube

 Characteristics
 FBPC-4
 FBPC-8
 FBPC-16
 FBPC-32
 Insertion Loss(dB)
  Typ : 0.15 , Max : 0.5
 Return Loss(dB)
Min : 50 , Typ : 55
 Number of Channels
4
8
16
32
 Spacing Fiber to Fiber(um)
250(127)±0.5
 Spacing Ribbon to Ribbon(um)
500(254)±0.5
 Dimension : L x W(mm)
10 x 4
10 x 4
10 x 6
10 x 10
 Material(Lid/Substrate)
Quartz / Pyrex
 Polishing Angle(V-Block)
8±0.3(Angle)or ±0.3(Flat)
 Silicon Thickness
1000±25um
 Pyrex Thickness
1000±25um
 Fiber Type
Ribbon / Ribbon Cord
 Connector Type
SC, FC, ST, MU, LC
 Polishing Type
UPC, APC





 Polishing  SC, FC, ST, LC, MU/UPC, APC
 Connector  1, 2, 3M
 Cord length  1:1x4, 2:1x8, ?3:1x16, 4:1x32
 Fan-out Block Patch Cord
