HOME 제품소개 Optical Attenuators





  - Telecommunication networks
- CATV system
- Local Area Network
- Instrument


- Meets Telcordia GR-910-Core
- High power endurance
- Modal Noise suppression
- Low polarization dependent loss Wave length Insensitive


 Characteristics  Conditions

Value

Min Typ Max
 Attenuation(dB)     1~30
 Return Loss  SPC  40
   UPC  50
   APC  60
 Attenuation Accuracy(dB)  1~14dB     ±1.0
   15~30dB     ±1.5
 Operating Wavelength(nm)  1310 and 1550
 Operating Temperature(°C)  -40~80
 Humidity  75°C, RH 95%

 Attenuation  1~20dB
 Polishing  SPC, UPC, APC
 Connector  SC, FC, ST, LC
 Usage  SM, MM

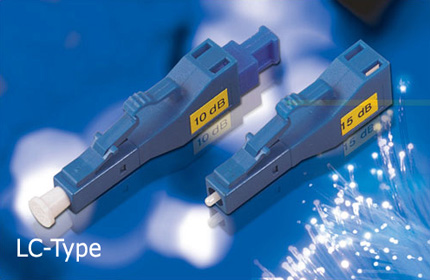

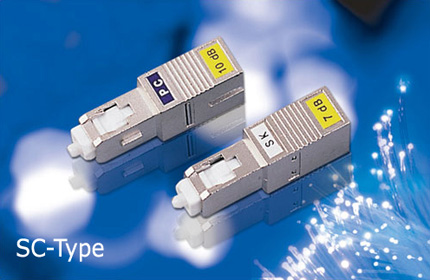

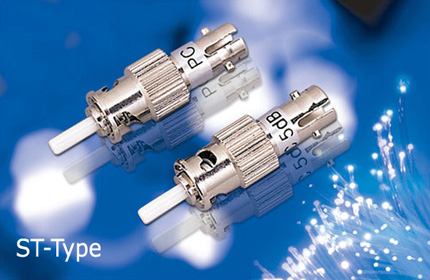

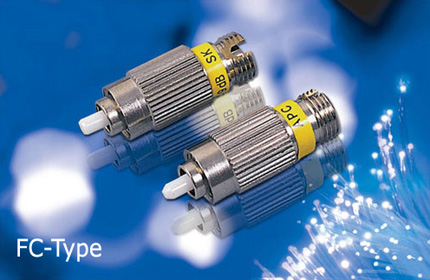

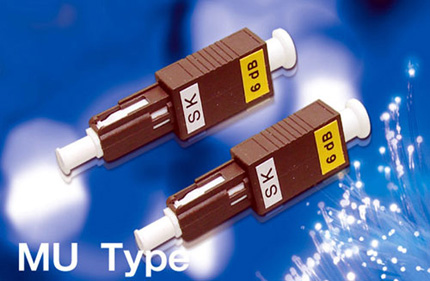

 Fiber Optic Attenuator Plug type
