HOME Products Optical Adaptors




- Telecommunication networks
- CATV system
- Local Area Network
- Instrument

  - Compliant with JIS, IEC, TIA/EIA 604
- Easy pannel mounting
- Ceramic & Phosphore Bronze sleeve available
- Environmental stable



 Characteristics  Conditions

Value

Min Typ Max
 Insertion Loss(dB)     0.05 0.20
 Durability(dB)  1,000 matings      0.20
 Operating Temperature(dB)  -40°C~80°C     0.20
 Humidity Cycling(dB)  75°C, RH 95%     0.20
 Vibration(dB)  10~55Hz(3 Axis)      0.20
 Impact(dB)  1.5m drop, 8 cycles     0.20



S : Shutter WS : with Shutter

Mating port

1 : one way 2 : two way 4 : four way

Mating sleeve

B : Bronze C: Zirconia Ceramic

Connecting Type

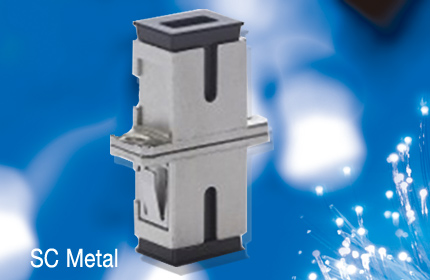

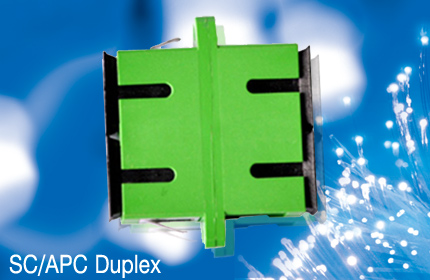

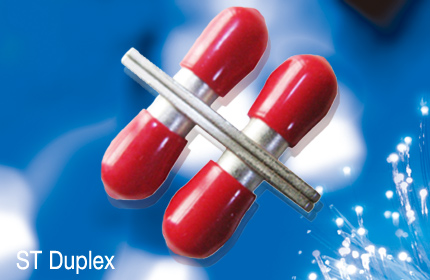

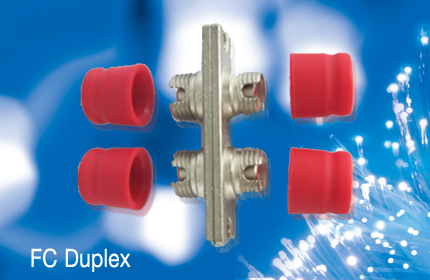

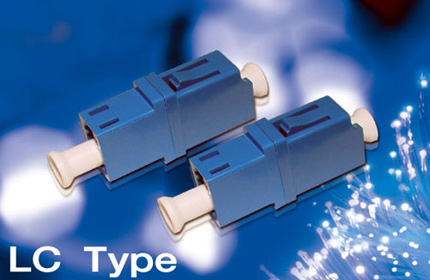

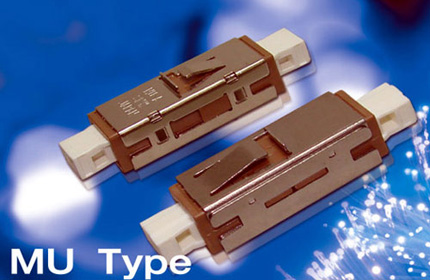

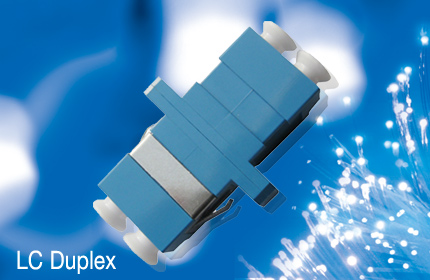

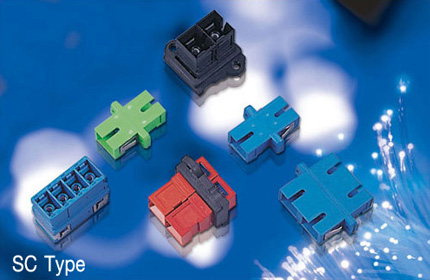

SC/SC, SC/ST, SC/FC, FC/FC, ST/ST, LC/LC, MU/MU

Usage

SM, MM

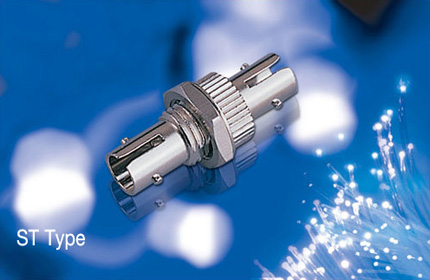

Fiber Optic Adaptor
