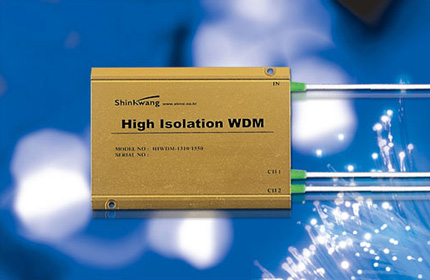

High Isolation WDM is Low loss and high performance product used for separating and combining two
different wavelength. Available at both wavelength regions, these products are fabricated by cascading
many 1˚ ø2 fused taper WDMs to get high optical isolation.
  - CATV
- Telecommunication
- Local Area Networks
- Test Equipment


- Low insertion loss
- High directivity
- Low PDL
- High isolation

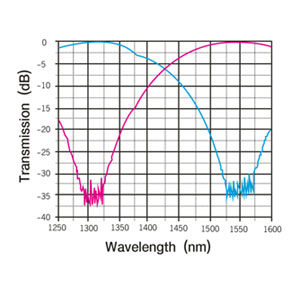

Blue : 1310nm Transmission Port
Red : 1550nm Transmission Port
Parameter Specification
 Operating Wavelength 1310 / 1550nm
 Grade Premium A grade
 Insertion Loss(Max) 0.7dB 1.0dB
 Isolation(min) 35dB 32dB
 Wavelength Bandwidth  ± 15nm
 PDL (dB) < 0.15
 Directivity (dB) >55
 Thermal Stability(Max)
 Operating Temperature
-40°C to +80°C
 Storage Temperature
-50°C to +80°C
 Package Dimension
S:ø3.0 X 55(L) L:ø3.0 X 70(L)
A:100(L) X 80(W) X 10(H)

 Output length  1~99m
 Polishing  SPC, UPC, APC
 Input length  1~99m
 Connector  SC, FC, LC, MU, D4, ST
 Package type  S : for Bare fiber(250um)
 L : for Loose tube(0.9mm)
 A : for Cord(2.4mm)
 Wavelength(nm)  1 : 1310/1550
 Configuration  1×2:0102
High Isolation WDM
