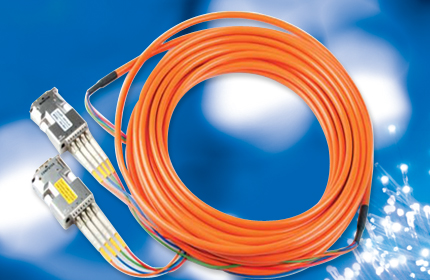

  DDL Series with fiber optical cable system let your digital flat panel display extend up to 1000M (3,300Ft) away from host by TMDS digital signal transmission.


- High Speed and long distance transmission by LC type Multi-mode Fiber
- Corresponding to T.M.D.S signal
- The use of standard DVI plug and LC type fiber connector
- R,G,B,Clock signal is transmitted separately by multimode optical fiber
- Supports up to WUXGA (1920 x 1200) for HDTV
- Pseudo-DDC detection function for EDID information
- Optional external power supply
- Self detection function for EDID information


- Frequency Bandwidth : 1.65Gbps (Single Link)
- Supporting Graphic Resolution & Distance : WUXGA resolution (1920x1200) 300M (984Ft)
                                                            UXGA resolution (1600x1200) 500M (1,650Ft)
                                                            SXGA resolution (1280x1024) 700M (2,300Ft)

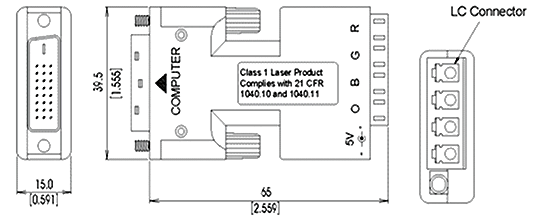

- Using Connector : DVI 24pin Plug and LC type connector
- Power Consumption
  • Tx: 0.65W(Max)
  • Rx: 1.15W(Max)
  - Optical Source : 850nm VCSEL
- O/E Converter : PIN Photo Diode
- Using Fiber : 50 / 125 LC type Multi-mode Fiber
  - Operation Temperature Range : 0 to 50 degrees Centigrade
- Storage Temperature Range : -20 to 70 degrees Centigrade

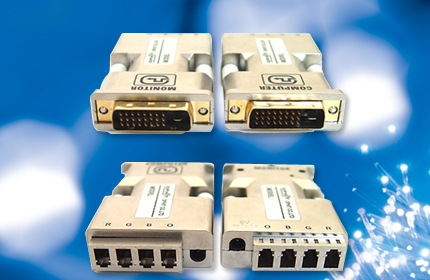

  - Transmitter, Receiver and 1 Power Adapter





DDL - A XXX - X
Model
Name
Type
A : Full set including of Tx, Rx, Adapter
     and Cable for Outdoor
B : Full set including of Tx, Rx, Adapter
      and Cable for Indoor
M : Tx, Rx and 1 Power Adapter

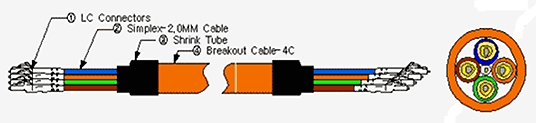

L : 4core LC to LC Fiber for Outdoor
     (50/125)
N : 4core LC to LC Fiber for Indoor
     (50/125)
LC Fiber Length
050=50 meters
100=100 meters
300=300 meters
500=500 meters

Pseudo-DDC function
Maximum Resolution for DDC check
0: No DDC Check
W: WUXGA
U : UXGA
S : SXGA
X : XGA
G : SVGA
A : VGA
