HOME Products Main Distribution Frame





  - For outdoor applications
- Double-walled sides, rear panel and door, providing thermal regulation
- Thermosetting fiberglass-reinforced polyester cabinets can endure climate changes and
  adverse environment and are rust proof
- Complete cable routing design with fiber bend radius over 40mm
- Well protected from accidental or malicious damages
- Full front operation, easy access to cables, pigtails, patch cords, adaptors and splices
- Modular design and easy installation, modules are exchangeable
- Optimal management for patch cords with fiber storage units
- Suitable for ribbon and non-ribbon optic fibers
- Tri-point-locking ensure safe and reliable capacity to 1152core



Type
Dimension H*W*D
Max capacity(F)
Remark

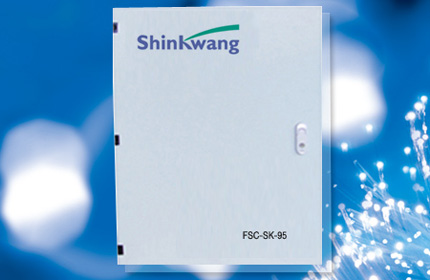

FSC-SK-96

770*560*320 (Base excluded)

96



FSC-SK-144

880*560*320 (Base excluded)

144



FSC-SK-288

600*320*1450 (Base included)

600*320*1170 (Base excluded)

288

Single door(front)

FSC-SK-576

1270*350*1500 (Base included)

1270*350*1220 (Base excluded)

576



FSC-SK-1152

1500*820*1500 (Base included)

1500*820*1200 (Base excluded)

1152
