1. PLC 스플리터





- Telecommunications networks
- CATV system
- Optical equipments
- Fiber optic sensors
- LAN





- Low excess loss & High performance
- Good uniformity & Low PDL
- Small package size
- Various connector type & Package size available





Parameter

Unit

Specifications

1x2

1x3

1x4

1x6

1x8

1x12

1x16

1x24

1x32

1x64

2x2

2x4

2x8

2x16

2x32

2x64

Insertion

Loss (Max)

dB

4.0

6.5

7.3

9.6

10.3

12.5

13.5

16.2

17.0

21.5

5.0

8.0

11.0

14.5

17.5

21.0

Uniformaity

(Max)

dB

0.5

0.5

0.5

0.7

0.7

0.8

0.8

1.2

1.2

1.8

1.2

1.3

1.5

2

2

2

PDL

(Max)

dB

0.15

0.15

0.15

0.15

0.15

0.2

0.2

0.2

0.2

0.3

0.3

0.3

0.3

0.4

0.4

0.4

Return Loss

(Min)

dB

≥ 50

Directivity

(Min)

dB

≥ 55

Fiber Type



G657A2

Dimension

(Ribbon Type)

mm

40x4x4

55x4x7

60x7x

12

40x4x4

60x7x12

Dimension

(Blockless Type)

mm

55x7x4

60x12x4

80x20x6



Dimension

(Module Type)

mm

150x40x14

N: 110x95x30

S: 100x60x22

110x95x30

110x195x30

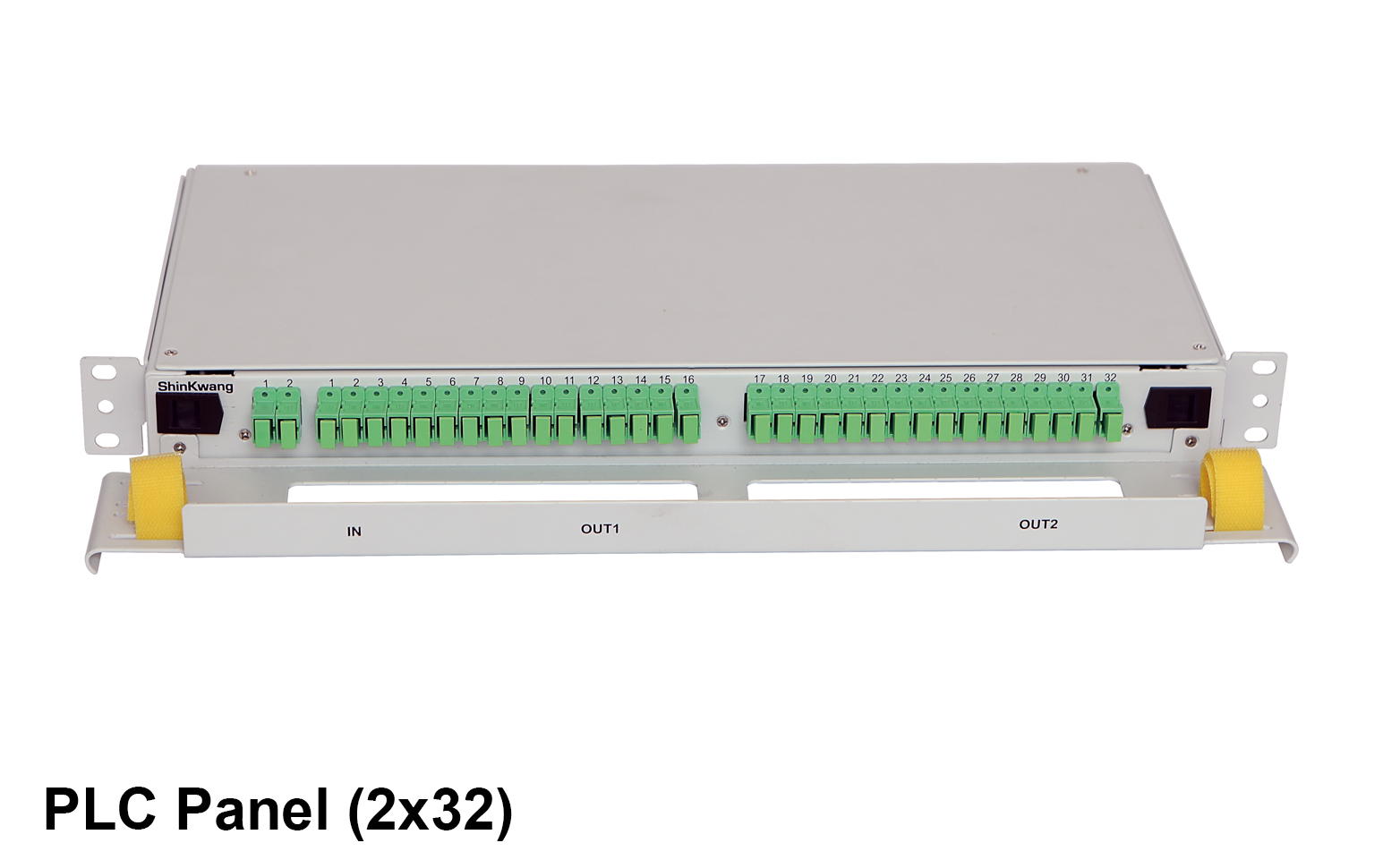

1U or 2U: 19”Rack type




PLC-A-BxC-D-E-F

PLC(Planar Lightwave Circuit)

A

B

C

D

E

F

TYPE

Input Channel

Output Channel

Connector Type

Input Length

Output Length

N: Ribbon type

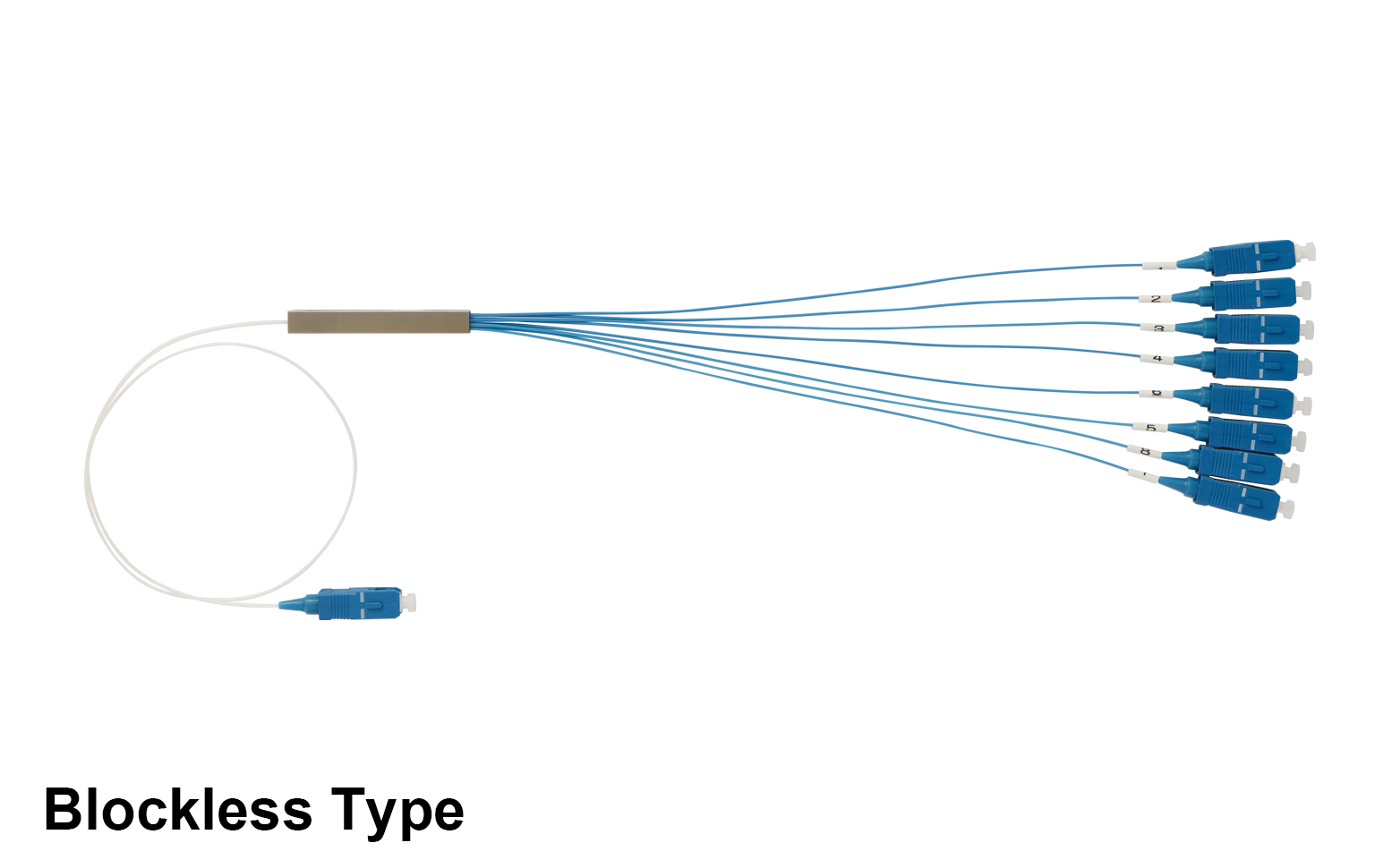

B: Blockless type

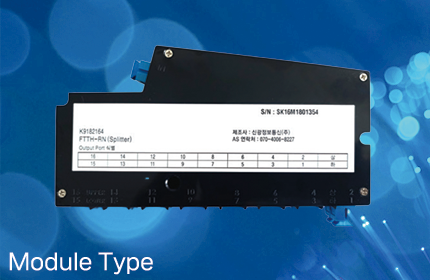

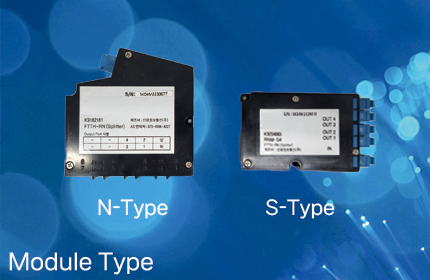

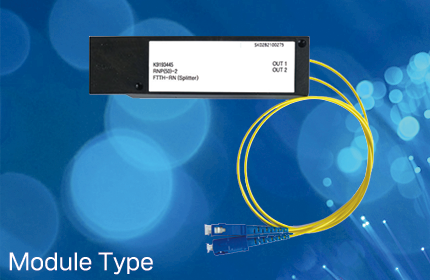

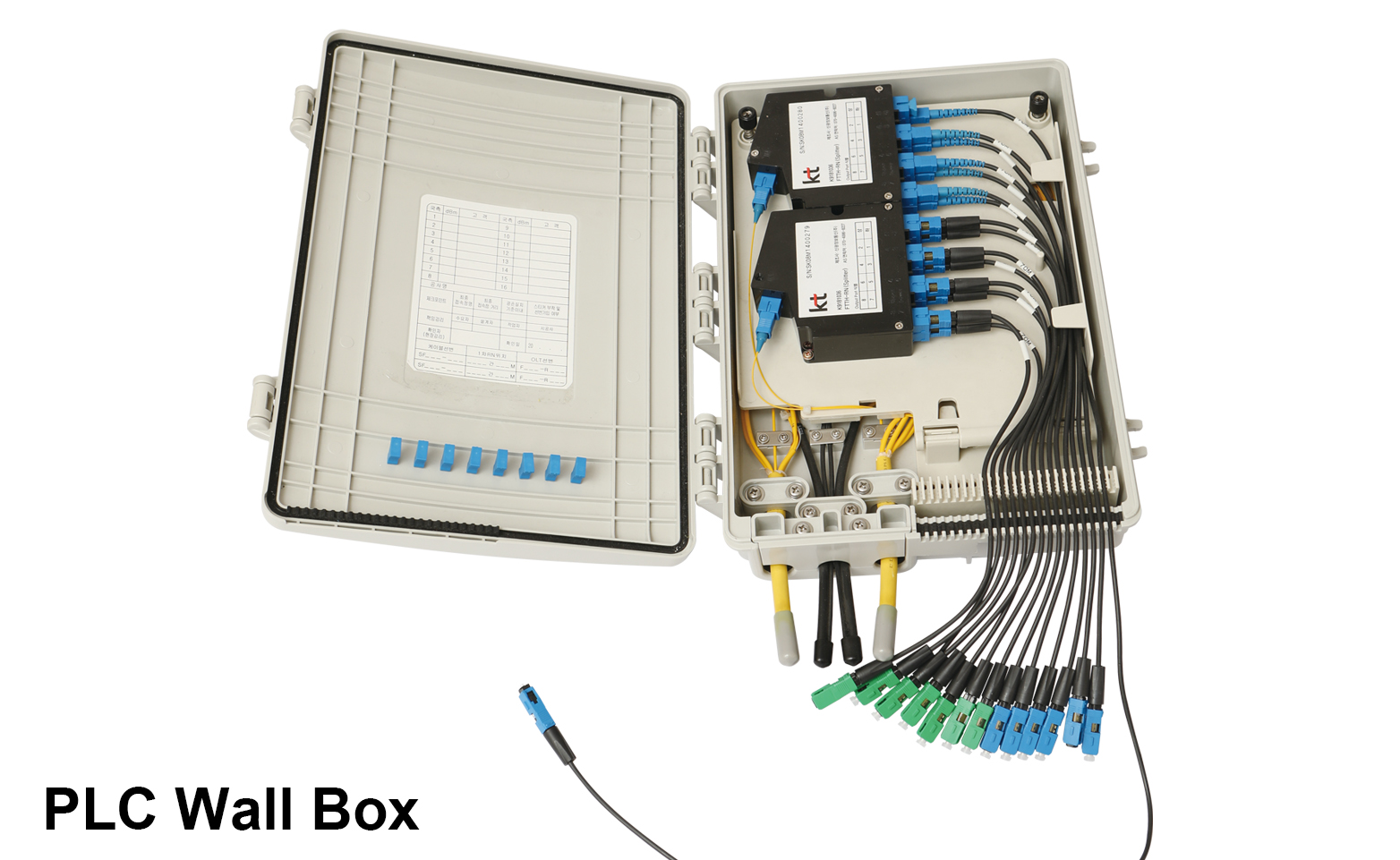

M: Module type

1 : 1CH

2 : 2CH

2,3,4,6,8,12,16,32,64

SU: SC/UPC

SA: SC/APC

LU: LC/UPC

LA: LC/APC

Customized

x : x(m)

x : x(m)
