[Hybrid 어댑터 | 광 어댑터 | 백플레인 아답터] 2. 광 어댑터
 | | | - Telecommunication networks
- CATV system
- Local Area Network
- Instrument |
|  | | | - Compliant with JIS, IEC, TIA/EIA 604
- Easy pannel mounting
- Ceramic & Phosphore Bronze sleeve available
- Environmental stable
|
|  | | | Characteristics | Conditions | Value | | Min | Typ | Max | | Insertion Loss(dB) | | | 0.05 | 0.20 | | Durability(dB) | 1,000 matings | | | 0.20 | | Operating Temperature(dB) | -40°C~80°C | | | 0.20 | | Humidity Cycling(dB) | 75°C, RH 95% | | | 0.20 | | Vibration(dB) | 10~55Hz(3 Axis) | | | 0.20 | | Impact(dB) | 1.5m drop, 8 cycles | | | 0.20 |
|

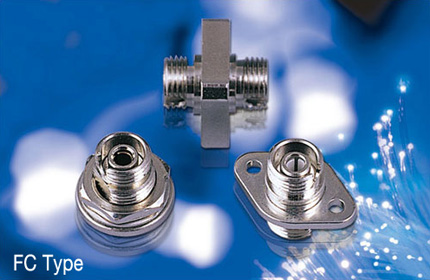

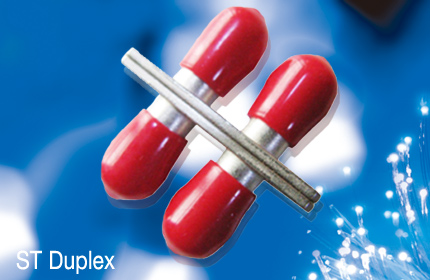

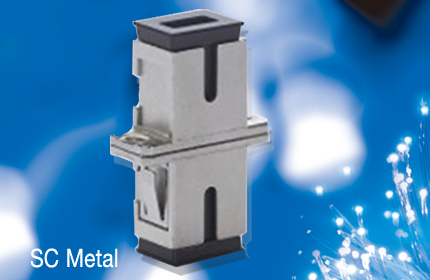

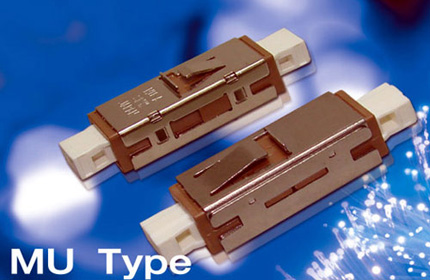

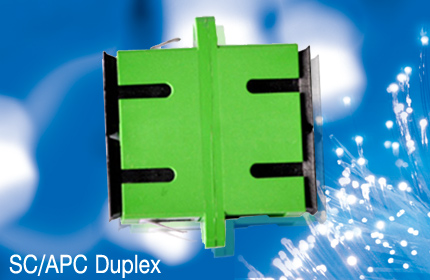

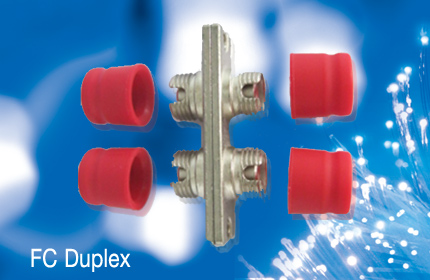

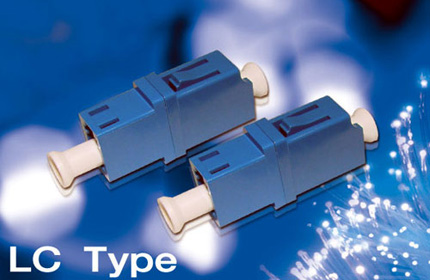

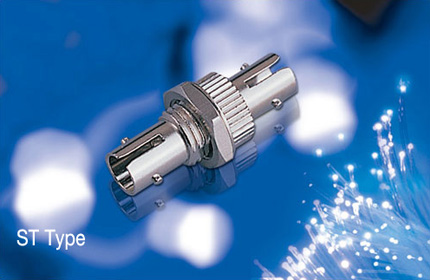

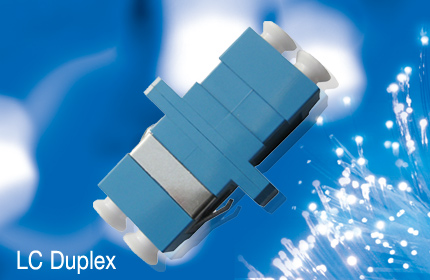

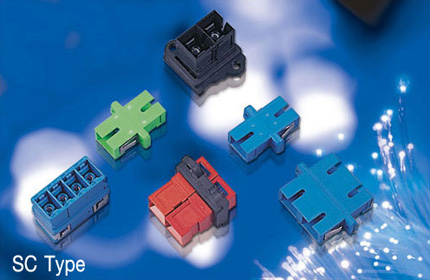

 | | | | | S : Shutter WS : with Shutter | Mating port | 1 : one way 2 : two way 4 : four way | Mating sleeve | B : Bronze C: Zirconia Ceramic | Connecting Type | SC/SC, SC/ST, SC/FC, FC/FC, ST/ST, LC/LC, MU/MU | Usage | SM, MM | Fiber Optic Adaptor |
|
|
|
|
