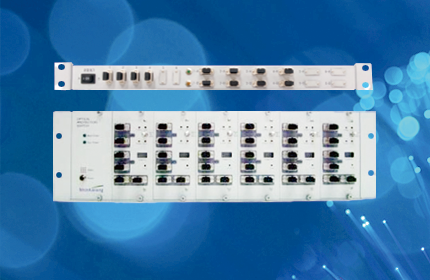

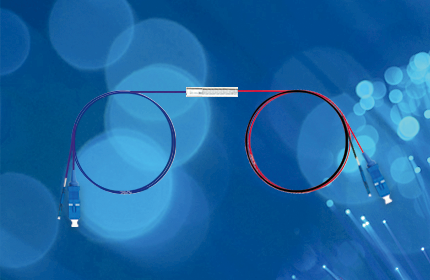

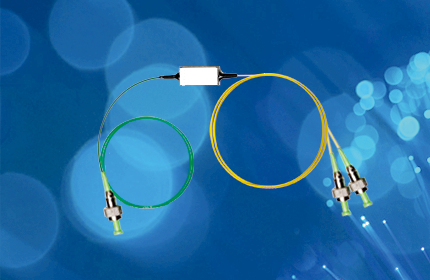

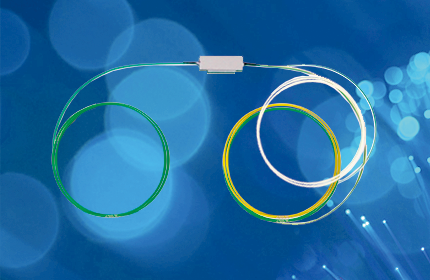

옥외용 광 패치코드 [광 스위치]1. 광 스위치
|
|
|
Parameter
|
Unit
|
1x1/1x2
|
1x4
|
1x8
|
1x16
|
2x2
|
2x4
|
|
Central Wavelength
|
nm
|
1280~1340, 1520~1625
|
|
Insertion Loss
|
dB
|
<0.6
|
<1.2
|
<2.0
|
<2.6
|
<1.0
|
<1.0
|
|
Return Loss
|
dB
|
>45
|
|
Polarization Dependent Loss
|
dB
|
<0.1
|
|
Switching Time
|
ms
|
<10
|
|
Switching Speed
|
Hz
|
<10
|
|
Switch Voltage
|
V
|
4.5~5.5
|
|
Operation Temperature
|
°C
|
-5~70
|
|
| |
|
SWT-A-B-C-D-E/F
|
|
SWT(Switch)
|
|
A
|
B
|
C
|
D
|
E
|
F
|
|
Input Channel
|
Output Channel
|
Wavelength
|
Control Method
|
Connector
|
Polishing
|
|
1 : 1Ch
|
2 : 2Ch
|
1310 : 1310nm
|
N : Non-latching
|
SC
|
UPC : Ultra PC
|
|
2 : 2Ch
|
4 : 4Ch
|
1550 : 1550nm
|
L: Latching
|
LC
|
APC : Angled PC
|
|
4 : 4Ch
|
8 : 8Ch
|
1315
: 1310 & 1550
|
|
FC
|
|
|
|
16 : 16Ch
|
|
|
|
|
|
|
|
