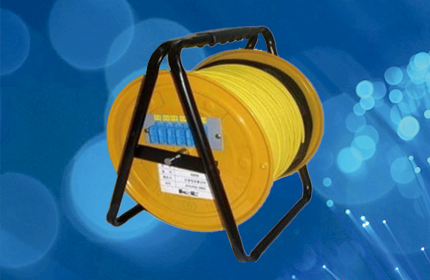

[Emergency Recovery Reel | ONU 케이블 | 광 성단 케이블] 1. Emergency Recovery Reel
|
|---|
| | - Telecommunication networks
- CATV system
- Local Area Network
|
|  | | | - Compact design
- High density accommodation
- Easy to handling
- Customer length |
|  | | | | Characteristics | Conditions | Value | | Min | Typ | Max | | Insertion Loss(dB) | | | 0.10 | 0.50 | | Return Loss(dB) | PC | 50 | 55 | | | | APC | 60 | 64 | | | Durability(dB) | 1,000 matings | | | 0.20 | | Operating Temperature(dB) | -40°C~80°C | | | 0.20 | | Humidity Cycling(dB) | 75°C, RH 95% | | | 0.20 | | Vibration(dB) | 10~55㎐(3Axis) | | | 0.20 | | Impact(dB) | 1.5m drop, 8 cycles | | | 0.20 |
|
 |  | | | A | B | C | D | E | | Fiber Type | Cable Length | Connector Type/End Shape | Pigtail cord Length(m) | Fiber count | | SM : 9/125 | 50~500 | SC | PC | 0.5 | 6C | | MM: 50/125 | | FC | APC | 1.0 | 12C | | HMM:62.5/125 | | ST | | 1.5 | | | | | | | 2.0 | | | | | | | 3.0 | |
|
|
|
|
|
