[광 분배함 | 광 커플러 분기기함] 2. 광 커플러 분기기함
OADM(Optical Add / Drop Multiplexer) is based on thin film filter technology and metal bonding
micro optics packaging. We provide high quality OADM with flexible channel configuration,
low insertion loss and high isolation. It is designed to add or drop a particular wavelength and is
ideal for telecommunication and network. | | |  | | | - Telecommunition network
- CATV System
- Premise System
|
|  | | - Compact design & High density accommodation ( Max 16 Module )

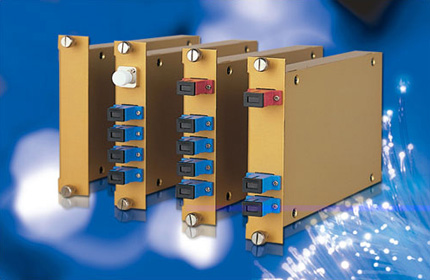

- Various connector type & 1 X 2, 1 X 3,1 X 4 configuration available |

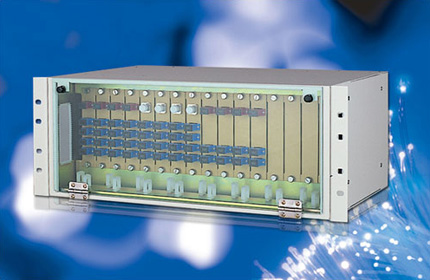

|  | | | model Parameter | Optical Coupler Distribution Frame | | Module capacity(EA) | Max.16 | | Module dimension | 20(W)X100(H)X175(D) | | OCDF dimension | 483(W)X176(H)X280(D) |
|
| | | | Output Adapter type | SC, FC, ST, LC, MU | Input Adapter type | SC, FC, ST, LC, MU | Q'ty per Configuration | 1~16 | Configuration | 1:1x2, 2:1x3, 3:1x4, 4:Blank Panel | Optical Coupler Disribution Frame |
|
|
|
|
