광점퍼코드 OJC

HOME 제품소개 POF(J3 BUS1, J3 BUS2)

F.A(공장자동화) 패치코드
[OM3(G-Type) | PCF(H-PCF) | POF(J3 BUS1, J3 BUS2)]
3. POF(J3 BUS1, J3 BUS2)



 - Compatible with Mitsubishi MRJ3BUS Type
- Can be applied to MRJ3BUS-XXX module

- Using Plastic Fiber
- Excellent tensile strength for conventional products
- The length can be decided by Customer’s request
- Diverse connector types are available
- Environmentally stable


Items
Conditions
Specification
Core
Material
Plastic Optical fiber
Outer Diameter
1.0±0.6mm
Sheath
Materal
PVC
Inner Diameter

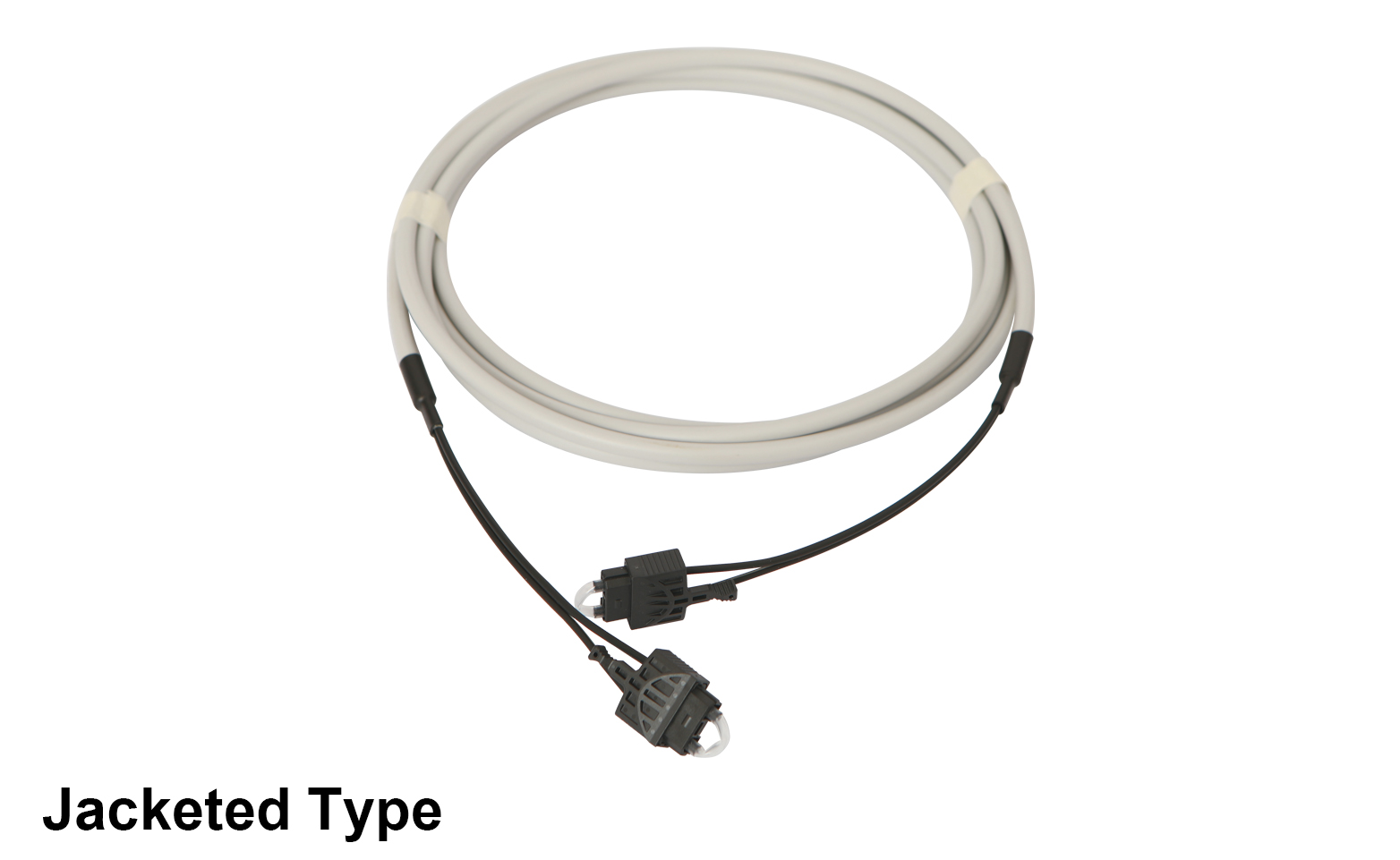

2.0±0.1mm*2 : Jacketed type
Outer Diameter

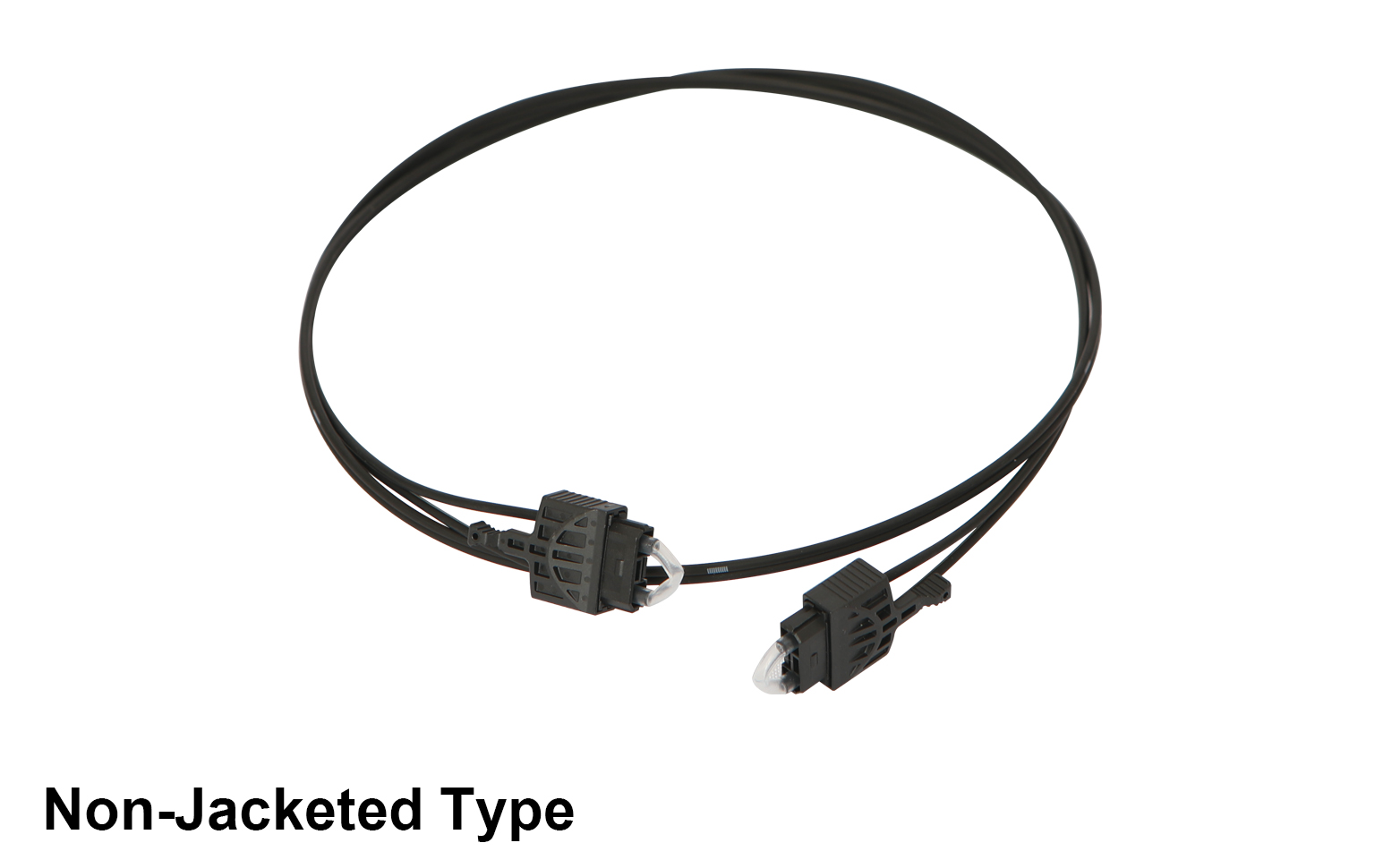

2.0±0.1mm*2 : Non-jaketed type
6.0 .2mm : Jacketed type







Cable Length

A : Non-Jacketed, B:Jacketed

Plastic Optical Fiber Connector
