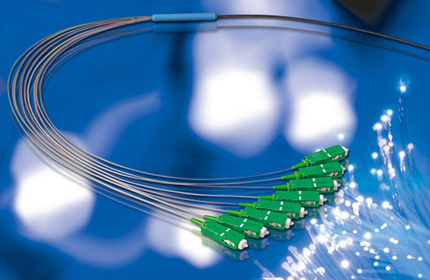

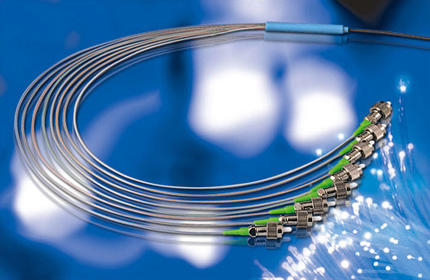

다심 광 패치코드 [Dry-core Cable | 다심 광 패치코드 | 팬아웃 패치코드 Type-I | 팬아웃 패치코드 Type-II]3. 팬아웃 패치코드 Type-I
 | | | - For Ribbon fiber cable
- Telecommunication networks
- CATV system
- Local Area Network
- Alignment for Active/Passive device
|
|  | | | - Compact design
- High density accommodation
- Easy to handling
- No need for special tools or heat shrinkage tube
|
|  | | | | Characteristics | Conditions | Value | | Min | Typ | Max | | Insertion Loss(dB) | | | 0.15 | 0.50 | | Return Loss(dB) | SPC | 40 | 45 | | | UPC | 50 | 55 | | | APC | 60 | 65 | | | Durability(dB) | 1000 matings | | | 0.20 | | Operating Temperature(dB) | -40°C~80°C | | | 0.20 | | Humidity Cycling(dB) | 75°C, RH 95% | | | 0.20 | | Vibration(dB) | 10~55Hz(3 Axis) | | | 0.20 | | Impact(dB) | 1.5m drop, 8 cycles | | | 0.20 |
|
| | | | Polishing Type | SPC, UPC, APC | | Connector | SC.FC.ST.LC.MU | Cord length | 1~3m | | Ribbon length | 1~10m | Fiber count | 4,8,12,16 core | | Fiber | SM, MM, HMM | | Fan-out Patch Cord |
|
|
|
|
